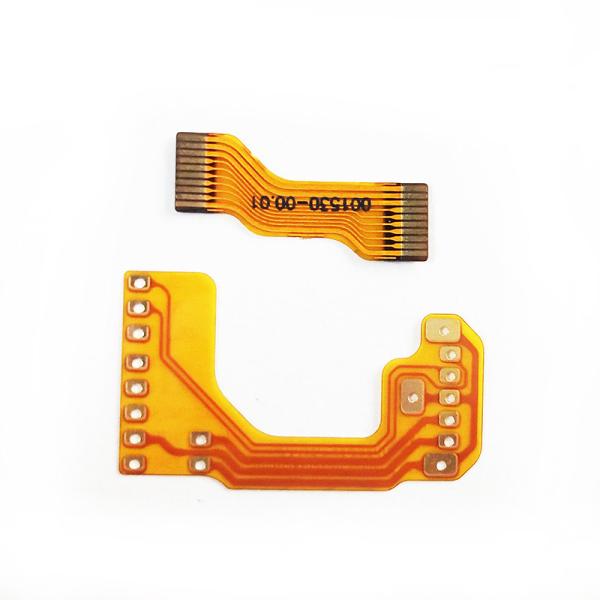

SMT Assembly Yellow Green 94v0 Electronic Rigid Flexible PCB

Product Categories

Shenzhen Jingbang Technology Co. , Ltd

Contact Now

Name: SMT Assembly Yellow Green 94v0 Electronic Rigid Flexible PCB
Brand: FASTPCBA
Price: 0.1 USD

Brand Name : FASTPCBA

Model Number : Flexible PCBs FR4 Manufacturing

Certification : ISO13485, IATF16949, ISO9001

Place of Origin : China

MOQ : 1PCS

Price : USD 0.1-3/ pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs/month

Packaging Details : 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package.

Service : One-stop Service

Layer Count : 1-48

Testing Service : Function Test, 100% Test

MOQ : No MOQ

PCBA Test : X-ray,AOI Test,Functional test

Min line/space : 0.075/0.075mm

Contact Now

Rigid Flexible Pcb And Smt Assembly One-Stop Service Printed Wiring Board Electronic Manufacxturer Service

* PCB Processing Capacity:

Base Material	Normal Tg FR4, High Tg FR4, PTFE, Rogers, Low Dk/Df etc.
Solder Mask Color	Green, Red, Blue, White, Yellow, Purple, Black
Legend Color	white, yellow, black, red
Surface treatment type	ENIG, HASL, HAF, HAF LF, OSP, flash gold, gold finger, sterling silver
Max. layer-up(L)	50
Max. unit size (mm)	700*460mm
Max. & Min. board thickness (mm)	0.3/12
Board thickness tolerance (mm)	T<1.0mm: +/-0.1mm; T≥1.0mm: +/-10%
Min. mechanical drilling hole (mm)	0.15
Min. laser drilling hole diameter(mm)	0.075
Min. innerlay clearance(mm)	0.15
Min. hole edge to hole edge space(mm)	0.28
Max. finished copper thickness(um)	Outer Layer: 420 (12oz) Inner Layer: 210 (6oz)
Min. & Min. trace width (mm)	0.075 (3mil)
Solder mask thickness (um)	line corner : >8 (0.3mil) upon copper: >10 (0.4mil)
BGA pad (mm)	≥0.25 (HAL or HAL Free:0.35)
V-CUT blade position tolerance (mm)	+/-0.10
Impedence tolerance (%)	+/-5%
Min. legend width (mm)	0.1
Fire flame calss	94v0


* PCBA Processing Capacity:

Processing Service	One Stop PCB Assembly service, include components & plastic mold sourcing, SMT&DIP assembly and enclosure installation service.
SMT Assembly	5 SMT Lines(10 million chips per day (0402, 0201 with 8 million per day)
DIP Assembly	3 Production Lines(1.2 million pcs per day)
Cable & Wire Assembly	Standard & Customized
Enclosure Assembly	3 Production Lines(Each line has 15 assemblers and 2 quality control engineers)
Components Package	Smallest with 01005, various chips package as QFN,BGA,SSOP,PLCC,LGA
Testing	E-test, Probe flying, Function testing, Temperature cycling, X-ray, AOI
Equipment	DSP1008, XPM2820,YG200,YV88-XG, YV100XGP, UNI-AX8200,WS-4501,XPM2820
Conformal Coating	Yes
PCBA Packing	Bubble, Anti-Static package (or in your requirement)
MOQ	No MOQ(1PCS)
Factory Certificate	IATF16949, ISO13485, ISO9001

SMT Assembly Yellow Green 94v0 Electronic Rigid Flexible PCB

International Equipment:

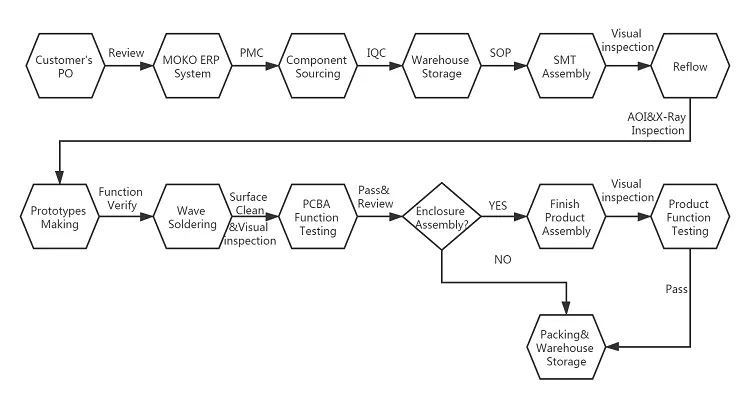

Simplified Production Flow:
