Fr4 Board PCB FPCB Assembly Flexible Rigid Printed Circuit Board PCB Motherboard
Process capability:
| Article | Description | Capability |
| Sercive | PCB and SMT assembly with one-stop service |
| Material | Laminate materials | FR4, high TG FR4, high frequency, alum, FPC |
| Board cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) | 0.003”(0.07mm) |
| Board thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” |
| 8layer:0.01±0.008” |
| Bow and twist | no more than 7/1000 |
| Copper weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
| Solder mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Thickness | (0.012*0.017mm) |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) |
| E-test | Function Test | 100% Functional test |
| PCBA Testing | X-ray,AOI Test,Functional test |
| Pcb assembly | one-stop service electronic manufacxturer service |
| Component sourcing | Yes |
| Certificate | IATF16949, ISO13485, ISO9001 |
| Delivery time: | PCB | 3-8days |
| PCBA | 10-20days |
| Tolerance of pcb | ±5% |
| Max size of finish board | 700*460mm |
| MOQ | NO MOQ (1pcs) |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB outline | Square,circle,irregular(with jigs) |
| package | QFN,BGA,SSOP,PLCC,LGA |
| Sub-assembly | Plastic,metal,screen |
PCB or PCB Assembly files requests
1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly
To short the lead time, please kindly advise us if there is any acceptable components substitution.
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary
FASTPCBA is the best pcb manufacturing and pcb assembly factory globally, with ISO9001, ISO13485, 14000, and IATF16949 certificates simultaneously, can provide better pcba service for customers from automotive pcba, medical pcba, industrial pcba,communication pcba,military pcba, aerospace pcba, Iot pcba etc.

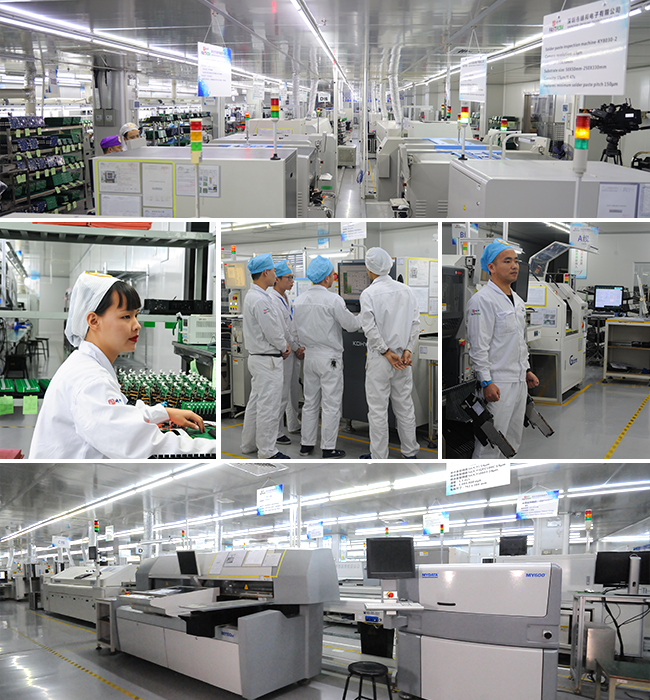

FASTPCBA keeps pace with the times, has imported advanced YAMAHA, MADATA, selective wave soldering, 3D AOI, X-RAY etc equiments, we can provide precise pcb assembly, accurate pcb printing, custom pcb manufacturing, original package componets agent service, save your cost and time at the same time.
FASTPCBA survival over 20 years, as our goal is always provide best quality pcba solution for customers from domestic and abroad like UK, France, Gemany, Russia, America, Brazil, Japan etc. FASTPCBA can turn your pcb design to pcba or pcb assp, welcome to inquiry and visit us in shenzhen china.
Product Tags:
|
|
Low Volume SMT Fr4 Board PCB Motherboard Assembly Service Images
|
